產品詳情

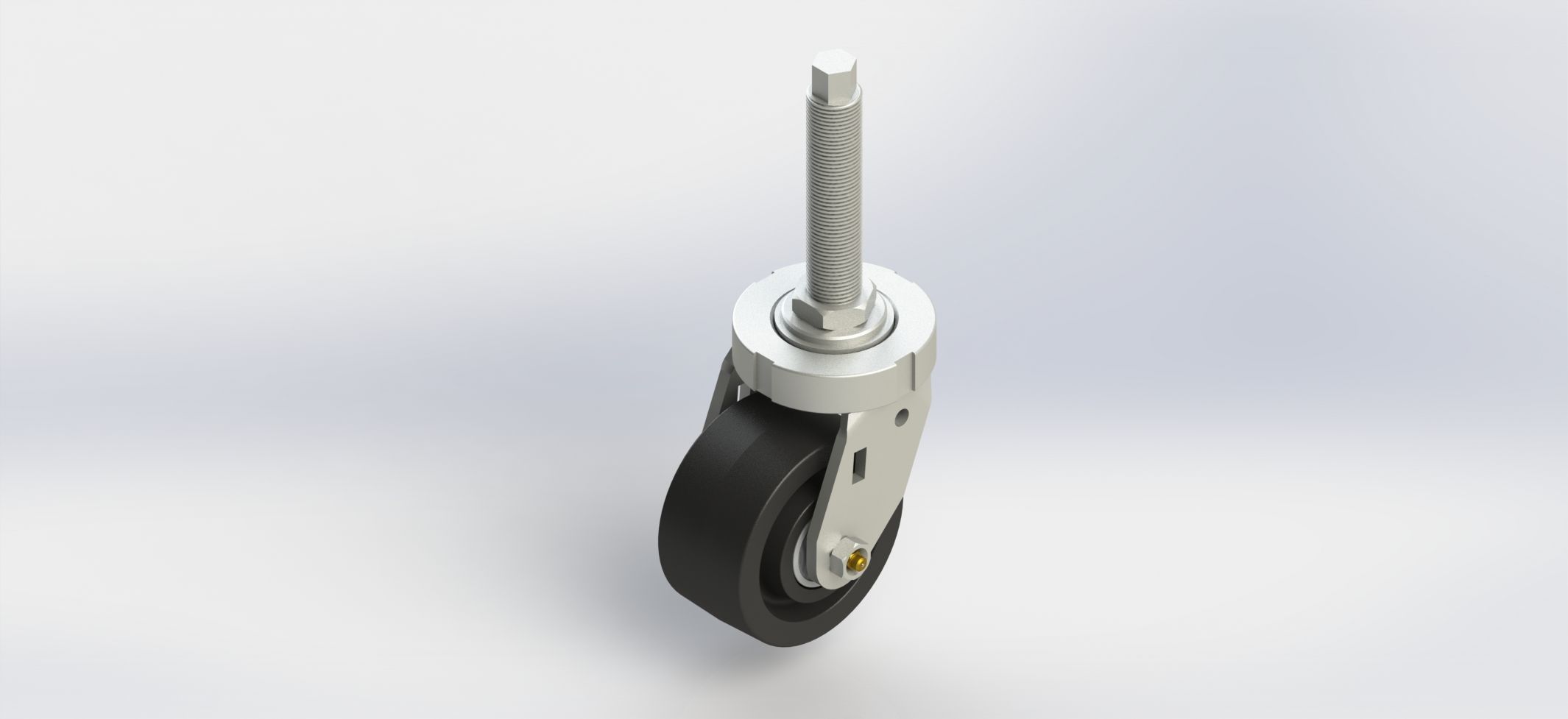

K6340-M24118-NY.B3 4x2Heavy-Duty Impact-Resistant Nylon Casters
評論:0
型號: K6340-M24118-NY.B3
材質: 尼龍
載重: 500kgs
尺寸: 100x50mm
硬度: 70 Shore D
適應溫度: -25~65℃
市場價: ****
產品詳情
產品評論(0)

K6340-M24118-NY.B3 4x2抗沖擊活動尼龍腳輪(M24x118mm)

K6340-M24118-NY.B3 4x2抗沖擊活動黑色尼龍腳輪(M24x118mm)

——專為機柜/機架/物流設備打造的工業級移動解決方案


在工業機柜搬運和物流設備移動中,傳統腳輪常面臨:
?? 結構斷裂 - 重載沖擊下尼龍輪易開裂
?? 轉向卡死 - 支架結構不耐橫向沖擊
?? 安裝失效 - 非標螺栓孔導致固定松動


? 70mm超厚輪面+48mm輪寬,靜態負載達1800kg
? 玻纖增強尼龍材質(符合DIN 53424標準)
? 360°全向沖擊吸收結構


? 工業級安裝保障
? M24x125mm高強度鍍鋅螺栓(8.8級)
? 防松脫專利螺紋結構


應用

? 19英寸標準機柜移動
? 自動化物流AGV底盤
? 5G基站設備架
? 重型工具車


讓每一次設備移動,都成為生產力的延伸!

K6340-M24118-NY.B3 4x2抗沖擊活動黑色尼龍腳輪(M24x118mm).JPGK6340-M24118-NY.B3 4x2抗沖擊活動黑色尼龍腳輪(M24x118mm)_00.png


K6340-M24118-NY.B3   Heavy-Duty Impact-Resistant Nylon Casters
——Industrial-Grade Mobility Solution for Cabinets/Racks/Logistics Equipment


Industry Pain Points

Traditional casters often fail in industrial cabinet handling and logistics equipment movement:
?? Structural Fracture - Nylon wheels prone to cracking under heavy loads
?? Steering Jam - Poor lateral impact resistance in swivel mechanisms
?? Installation Failure - Non-standard bolt holes causing loosening


Product Advantages

? Military-Grade Impact Resistance
? 70mm extra-thick tread + 48mm wheel width, 1800kg static load capacity
? Glass-fiber reinforced nylon (DIN 53424 compliant)
? 360° omnidirectional impact absorption structure

? Industrial Installation Security
? M24x125mm high-strength galvanized bolts (Grade 8.8)
? Patented anti-loosening thread design


Applications

? 19" standard cabinet relocation
? Automated logistics AGV chassis
? 5G base station equipment racks
? Heavy-duty tool carts


Transform Every Equipment Movement into Productivity Enhancement!

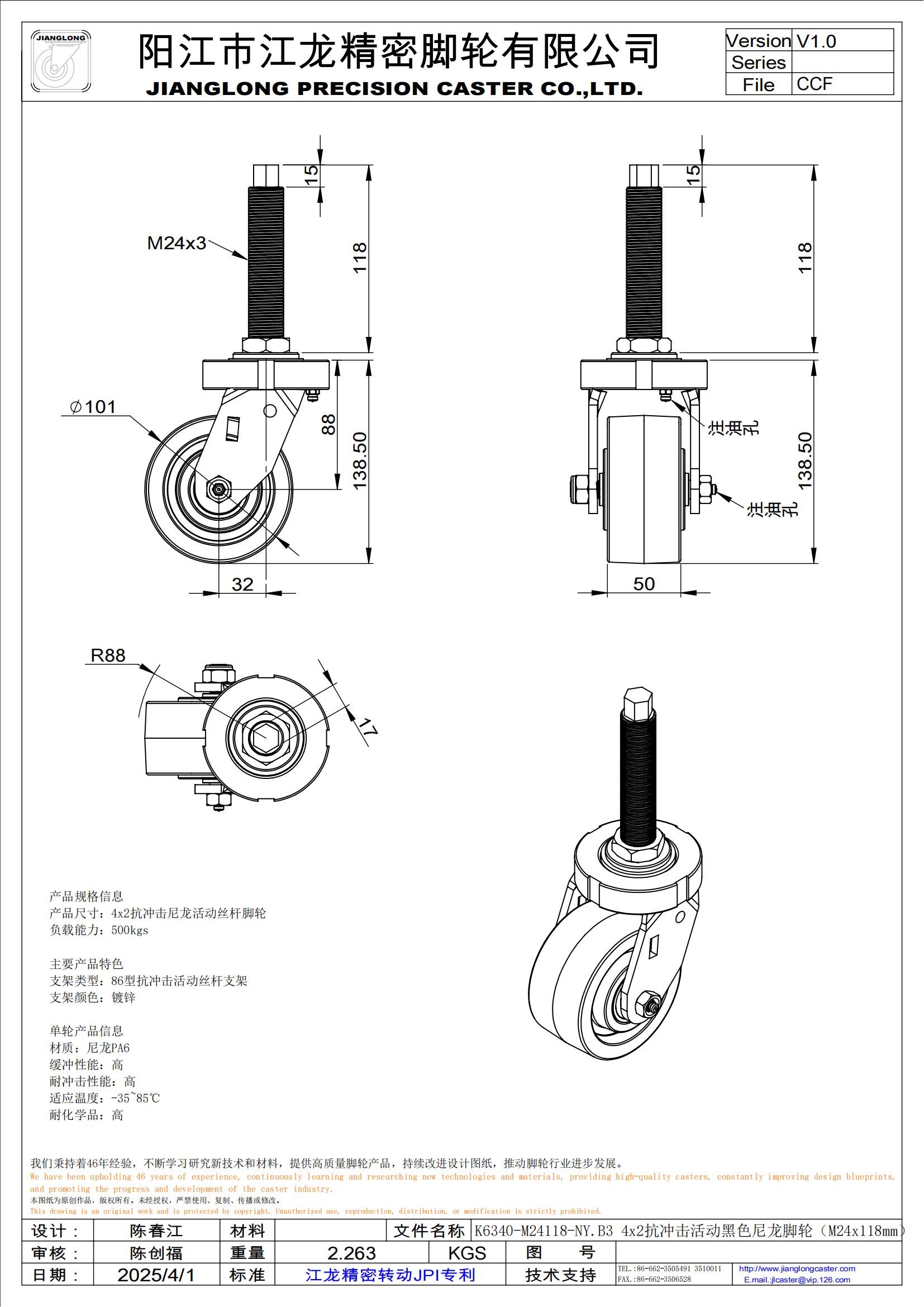

(Recommended visual: Cabinet moving scenario + Cross-sectional wheel diagram)

Technical Annotation Standards:

  1. Dimensions formatted as "Diameter×Width" per industry convention

  2. Bolt specifications with thread parameters (M24×125)

  3. Material standards referenced to DIN/ISO international norms

  4. Load capacity explicitly stated with measurement standard (static/dynamic)

Key Terminology:
? Heavy-Duty = Industrial-grade load capacity
? Impact-Resistant = Specifically engineered shock absorption
? Galvanized bolts = Zinc-plated for corrosion resistance
? Static load = Stationary weight-bearing capacity

This version maintains all technical specifications while optimizing for:

  1. International industrial equipment buyers

  2. Technical documentation requirements

  3. Search engine visibility for industrial components

  4. Consistent with ISO standards for mechanical components
