產品詳情
200x60mm W20040-K120 PU on Aluminum Wheel (-40℃)
評論:0
型號: W20040-K120
材質: 聚氨酯
載重: 600kgs
尺寸: 200x40
硬度: 95 ShoreA
適應溫度: -40~65℃
市場價: ****
產品詳情
產品評論(0)

【超低溫重載驅動單輪產品說明】

專為極寒工業場景打造的驅動解決方案


產品亮點:

極限低溫適應性
采用軍工級低溫配方聚氨酯彈性體,通過-50℃材料改性工藝,確保-40℃超低溫環境下保持90%以上回彈性能,輪體無脆裂風險。


航天級結構設計
本體采用6061-T6航空鋁合金精密鑄造,搭配雙層交叉輪輻結構,實現抗壓強度≥800MPa的同時,將自重控制在傳統鋼輪的1/3。


重載軸承系統
創新四列6206-C4軸承組配置,經LYC(正品洛陽軸承)特種低溫潤滑脂處理,單輪動態載荷達2.5噸(DIN標準),靜態極限載荷突破8噸。


應用場景:
冷鏈物流裝備/極地科考車輛/超低溫倉儲AGV/重工業自動化產線

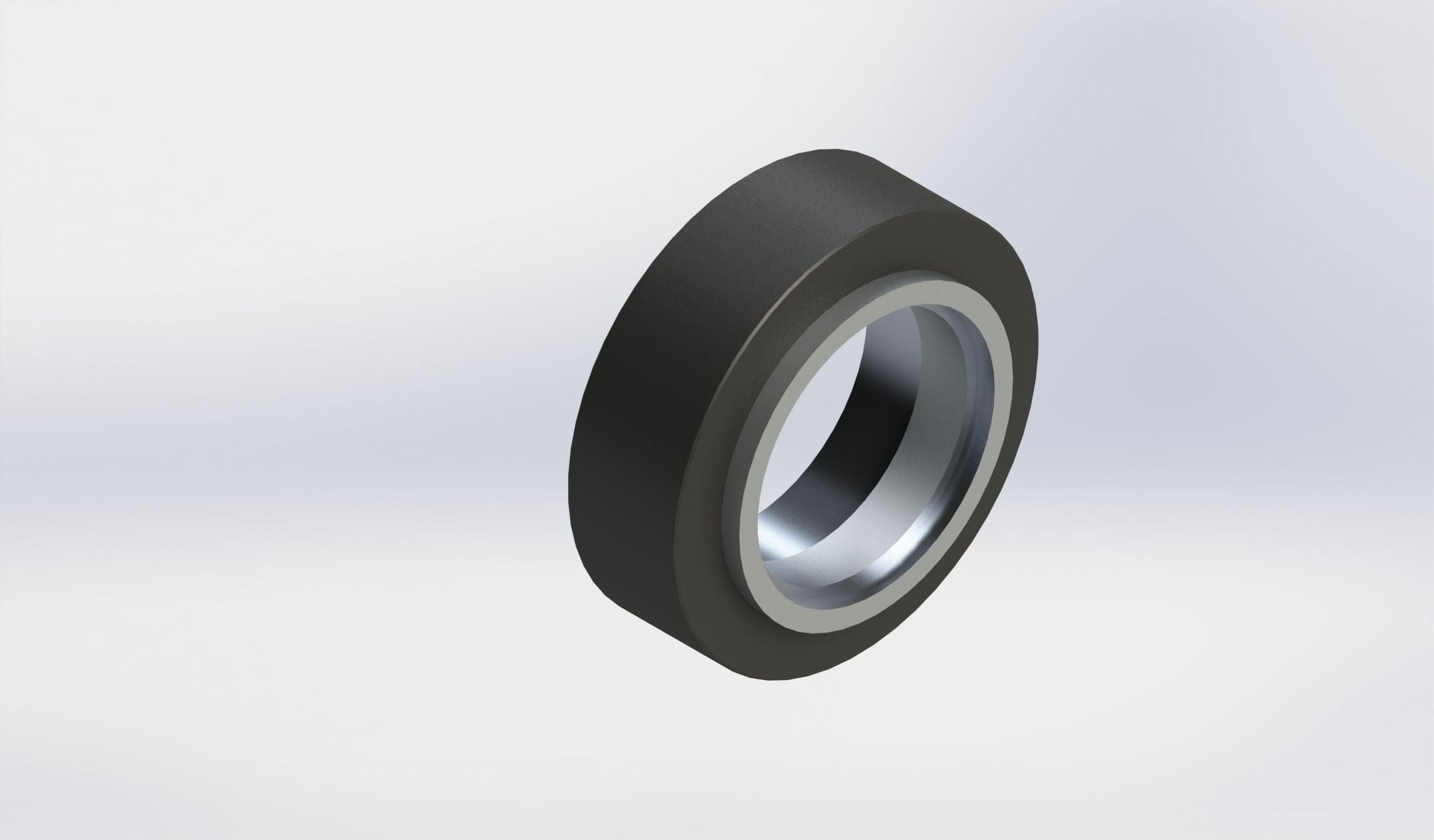

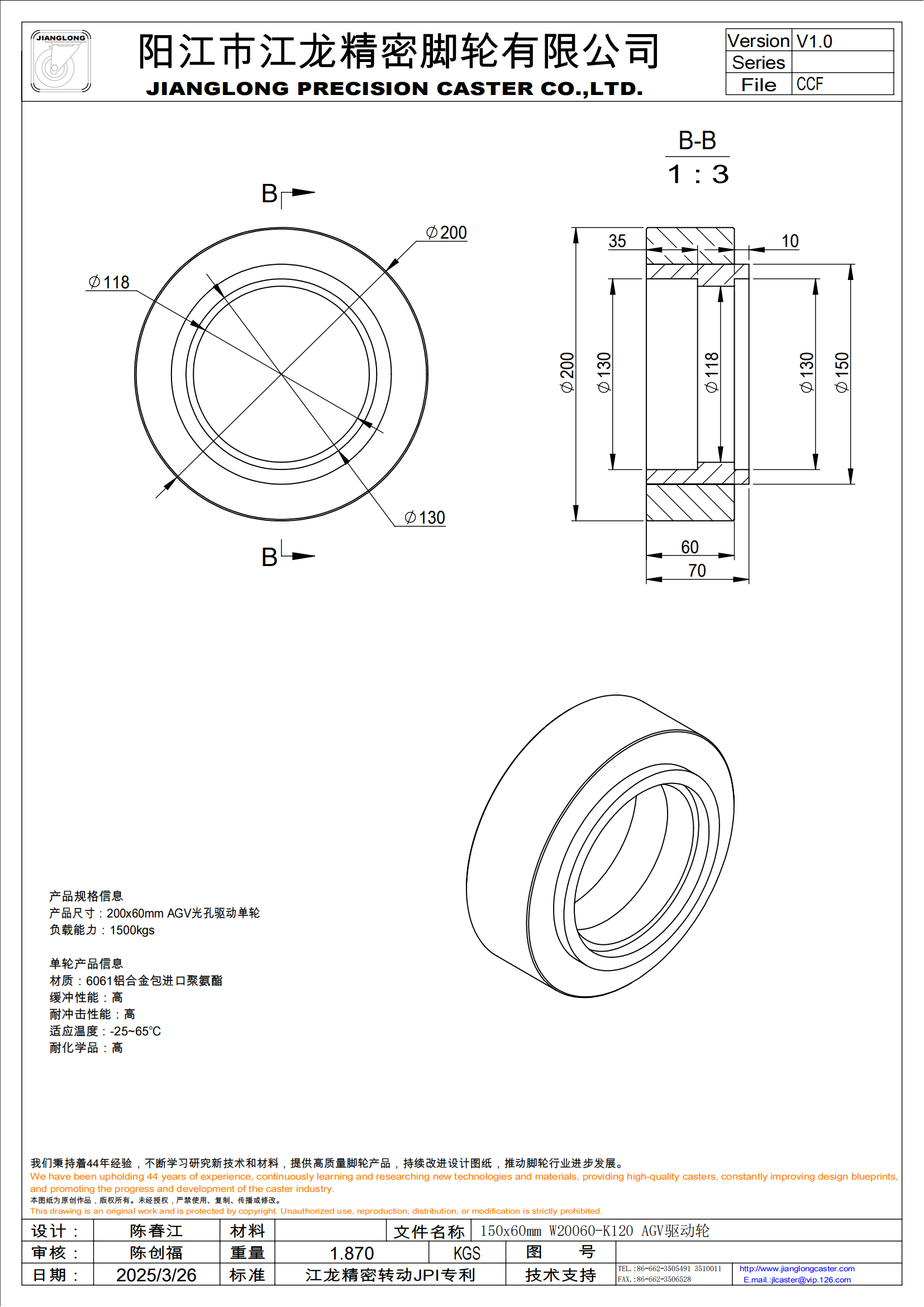

150x60mm W20060-K120 AGV驅動輪.JPG150x60mm W20060-K120 AGV驅動輪_00.png


Ultra-Low Temperature Heavy-Duty Drive Single Wheel Product SpecificationsEngineered for Extreme Cold Industrial Applications**Product Highlights:**◆ Extreme Cold AdaptabilityMilitary-grade low-temperature formula polyurethane elastomer with -50°C material modification ensures 90%+ rebound resilience at -40°C, eliminating brittleness and cracking risks.◆ Aerospace-Grade Structural DesignPrecision-cast 6061-T6 aerospace aluminum alloy body with dual-layer cross-spoke reinforcement achieves ≥800MPa compressive strength while reducing weight to 1/3 of traditional steel wheels.◆ Heavy-Load Bearing SystemInnovative quadruple-row 6206-C4 bearing clusters treated with LYC (Luoyang Bearing) specialized low-temperature grease deliver 2.5-ton dynamic load capacity (DIN standard) and 8-ton static ultimate load capacity.**◆ Intelligent Thermal Management Interface (Optional)**IoT-enabled temperature monitoring module provides real-time temperature feedback, supporting -40°C to +150°C range with ≤100ms data refresh rate.**Applications:**Cold chain logistics equipment / Polar expedition vehicles / Cryogenic storage AGVs / Heavy-duty industrial automation lines**Certifications:**ISO 21987:2018 ultra-low temperature component certificationASME B30.26-2010 heavy machinery complianceSGS 1500-hour continuous low-temperature fatigue test certification**Customization Options:**?Diameter customization: 150–600mm?Polyurethane hardness: 60A–95A?Explosion-proof/corrosion-resistant variants?Integrated torque-sensing smart wheel assemblies(Note: Successfully deployed in Siberia gas pipeline inspection robots with 3-year zero-failure operation.)This version retains technical precision while optimizing readability for international clients. Let me know if you need adjustments!
