產品詳情

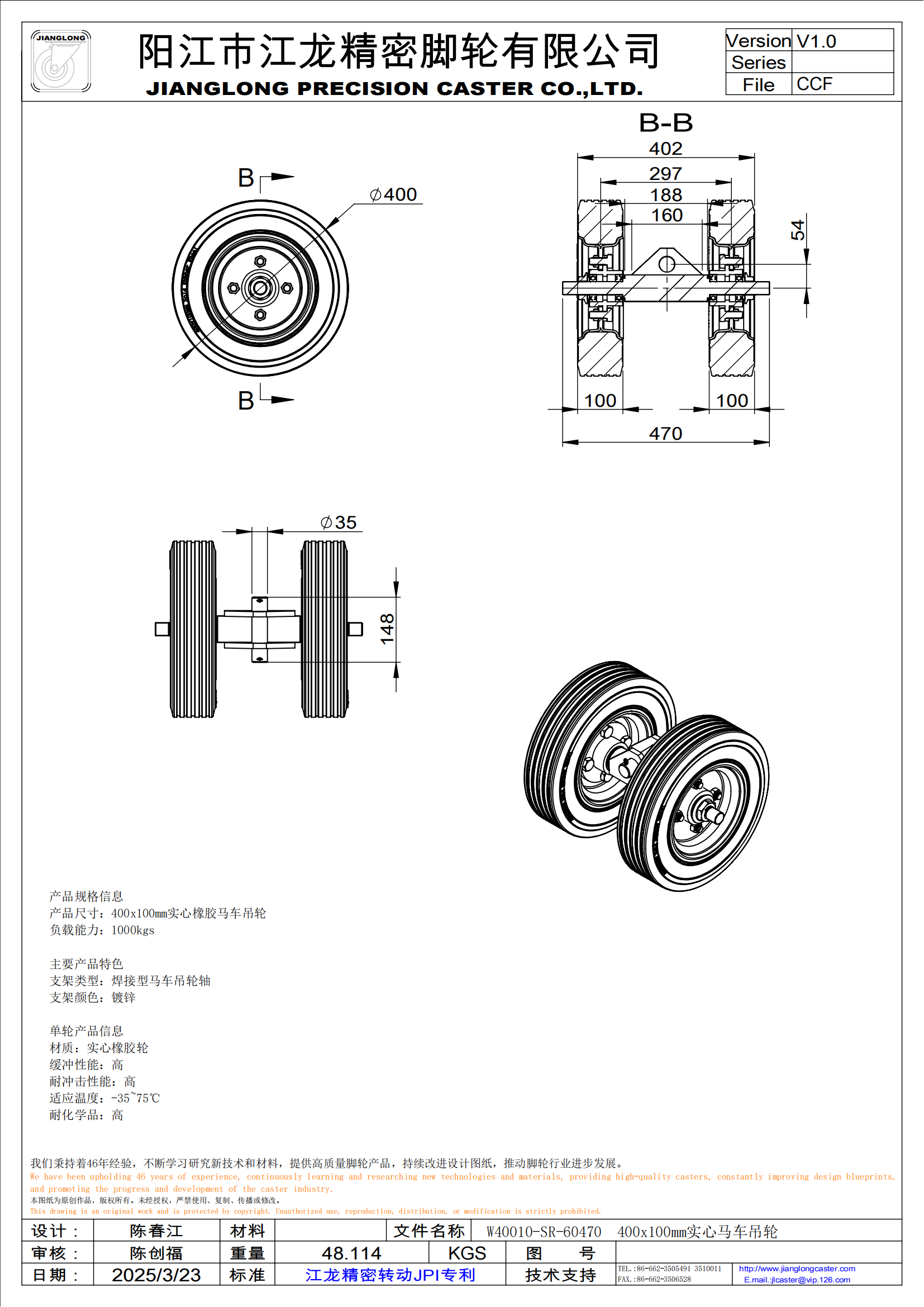

W40010-SR-60470 400×100mm Solid Rubber Swivel Caster for Carriages
W40010-SR-60470 400×100mm Solid Rubber Swivel Caster for Carriages
評論:0
型號: W40010-SR-60470
材質: 橡膠
載重: 1000kgs
尺寸: 400x100mm
硬度: 85 Shore A
適應溫度: -40~65℃
市場價: ****
產品詳情
產品評論(0)

W40010-SR-60470   400x100mm實心馬車吊輪

江龍腳輪產品簡介
型號:98122-190190-RCI
規格:300×80mm 雙輪組鑄鐵包橡膠活動輪


產品概述

江龍腳輪98122-190190-RCI專為多功能集裝箱板拖車設計,是一款高性能、高承載的定制化腳輪。采用雙輪組鑄鐵包橡膠結構,結合超耐磨實心輪胎技術,完美適配集裝箱板拖車的嚴苛作業環境,確保裝卸、運輸過程中穩定高效,大幅延長使用壽命。


核心優勢

  1. 超強承重與耐用性

    • 輪體采用鑄鐵包覆高彈性橡膠,兼具金屬結構強度與橡膠減震性能,單輪負載能力達1500kg,雙輪組協同承重更優,輕松應對重型集裝箱板運輸需求。

    • 實心輪胎設計,免充氣、抗刺穿,適應復雜地面環境(如碎石、油污),耐磨性提升50%,無懼長期高負荷作業。

  2. 靈活轉向與穩定制動

    • 特制萬向輪結構,支持360°靈活轉向,搭配拖車尾部彈簧掛鉤及多車連接功能,實現狹小空間內精準操控與多車編組作業。

    • 內置活動式制動限位裝置,與拖車兩側固定限位裝置聯動,雙重保障集裝箱板運輸中不脫軌、不跳動,安全系數倍增。

  3. 適配性與兼容性

    • 專為側面裝載型拖車優化設計,輪組高度與拖車28根鍍鋅滾筒無縫配合,確保P1P/P6P航空集裝板及LD系列(LD1-LD39)集裝箱裝卸流暢。

    • 輪徑300mm、寬度80mm,完美匹配行業標準軌道間距,降低摩擦損耗,延長拖車整體使用壽命。

適用場景

  • 航空物流:LD1、LD2、LD3、LD4、LD7、LD8、LD9、LD11、LD26、LD29、LD39等標準航空集裝箱。

  • 集裝板運輸:P1P、P6P等航空集裝板的側向裝卸與短駁轉運。

  • 工業場景:重型設備、精密儀器的多車編組運輸與倉儲調度。


江龍腳輪——以精密制造賦能高效物流,為全球集裝箱運輸提供安全、可靠的解決方案!
如需定制服務或技術咨詢,請聯系江龍專業團隊。

W40010-SR-60470  400x100mm實心馬車吊輪.JPG微信圖片_20250323194635.png微信圖片_20250323194641.pngW40010-SR-60470  400x100mm實心馬車吊輪_00.png

Jianglong Caster Product Introduction
Model: 98122-190190-RCI

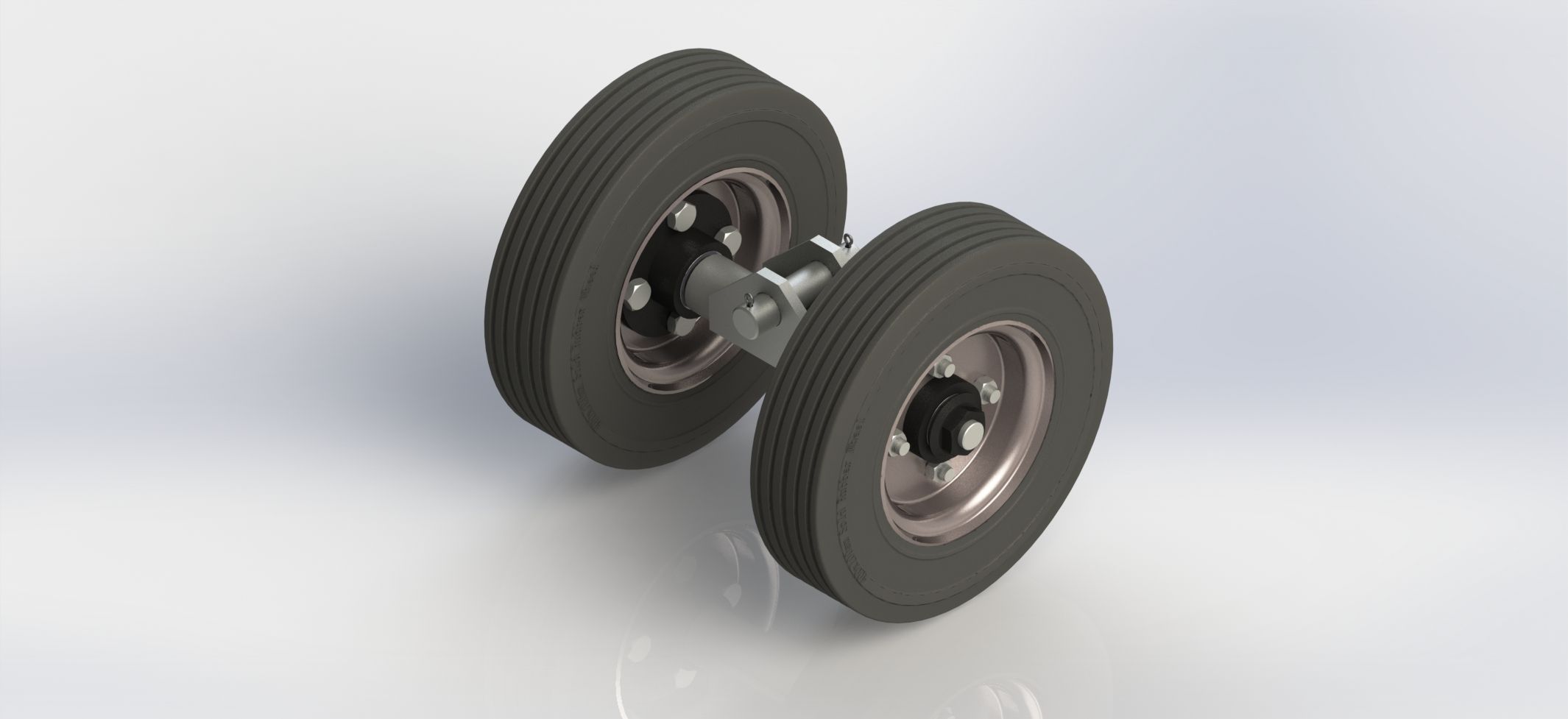

Specifications: 300×80mm Double Wheel Set, Cast Iron with Rubber Coating, Swivel Caster


Product Overview

The Jianglong Caster 98122-190190-RCI is specifically designed for multi-functional container pallet trailers. It is a high-performance, heavy-duty customized caster featuring a double wheel set with cast iron core and rubber coating. Combined with solid tire technology, it perfectly adapts to the demanding working environment of container pallet trailers, ensuring stable and efficient loading, unloading, and transportation while significantly extending service life.


Core Advantages

  1. Exceptional Load Capacity and Durability

    • The wheel body is made of cast iron coated with high-elasticity rubber, combining the strength of metal with the shock-absorbing properties of rubber. The single wheel load capacity reaches 1500kg, and the double wheel set provides even greater load-bearing performance, effortlessly handling heavy container pallet transportation needs.

    • Solid tire design, puncture-proof and airless, adapts to complex ground conditions (such as gravel and oil), with wear resistance increased by 50%, ensuring long-term high-load operations.

  2. Flexible Steering and Stable Braking

    • Custom swivel wheel structure supports 360° flexible steering, paired with the trailer's spring-loaded rear hook and multi-trailer connection function, enabling precise maneuvering and multi-trailer operations in tight spaces.

    • Equipped with an adjustable braking and positioning device, working in tandem with the trailer's side fixed positioning devices, providing dual protection to prevent container pallets from derailing or bouncing during transportation, significantly enhancing safety.

  3. Adaptability and Compatibility

    • Optimized for side-loading trailers, the wheel set height seamlessly integrates with the trailer's 28 galvanized rollers, ensuring smooth loading and unloading of P1P/P6P aviation pallets and LD series (LD1-LD39) containers.

    • With a wheel diameter of 300mm and width of 80mm, it perfectly matches industry-standard track spacing, reducing friction loss and extending the overall service life of the trailer.


Technical Parameters

AttributeDetails
Model98122-190190-RCI
Wheel Diameter × Width300mm×80mm
MaterialCast Iron Core + High-Density Rubber Coating
Load CapacitySingle Wheel 1500kg, Double Wheel Set Enhanced
Operating Temperature-30℃~+80℃
Steering TypeSwivel Caster (with Brake Lock)
Application ScenariosAviation Logistics, Warehousing, Port Transportation

Application Scenarios

  • Aviation Logistics: LD1, LD2, LD3, LD4, LD7, LD8, LD9, LD11, LD26, LD29, LD39, and other standard aviation containers.

  • Pallet Transportation: Side loading and short-distance transfer of P1P, P6P, and other aviation pallets.

  • Industrial Applications: Multi-trailer transportation and warehousing of heavy equipment and precision instruments.


Jianglong Casters – Empowering Efficient Logistics with Precision Manufacturing, Providing Safe and Reliable Solutions for Global Container Transportation!
For customization services or technical inquiries, please contact the Jianglong professional team.


Note: This product complies with ISO 9001 Quality Management System and aviation cargo equipment safety standards.
